Gondola Shelving Dimensions: Complete Size Guide

Selecting the right gondola shelving dimensions directly impacts your store's merchandising capacity, customer flow, and sales performance. This comprehensive guide covers every standard dimension so you can order with confidence.

1. Standard Gondola Dimensions Overview

Gondola shelving is measured in three primary dimensions. Each measurement serves specific merchandising functions and must align with your store format, product mix, and customer demographics.

• Height: How tall the unit stands (determines vertical capacity)
• Width: The length of each shelf section (affects planogram flexibility)
• Depth: How far shelves extend from the base (impacts product visibility)

2. Height Options Explained

Gondola upright heights determine your vertical merchandising capacity and influence how customers interact with displayed products. Research shows products placed above 72" see 40-60% lower pick rates due to reach limitations.

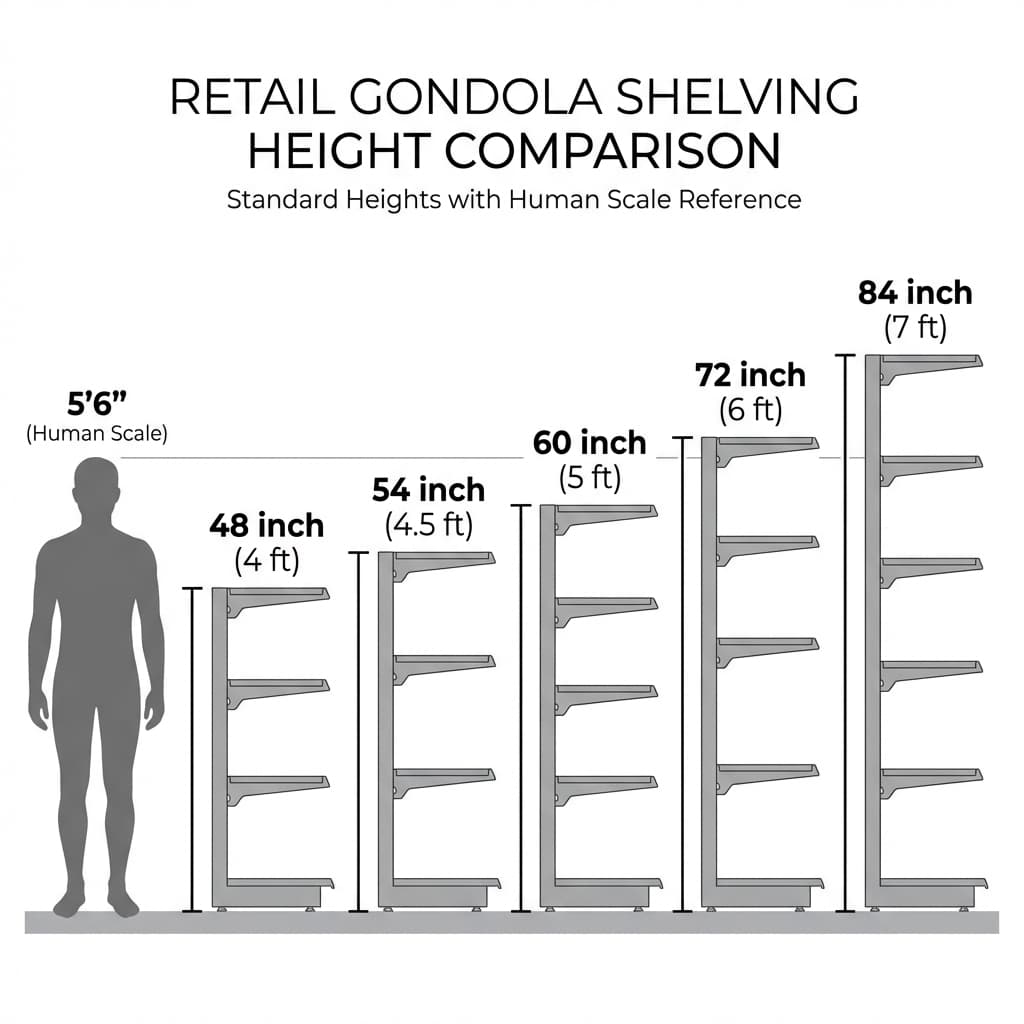

Standard gondola heights compared with human scale (5'6")

48" (4 ft) - Low Profile

• Best for: Checkout areas, promotional islands, impulse displays
• Advantage: Doesn't block sightlines, enhances store security
• Shelves: Usually 3-4 shelves
• Use case: End caps and cross-merchandising zones

54" (4.5 ft) - Standard Short

• Best for: Convenience stores, small boutiques, pharmacies
• Advantage: Easy customer reach to top shelf, open feel
• Shelves: 4-5 shelves
• Use case: High-theft areas needing visibility

60" (5 ft) - Medium

• Best for: General retail, convenience stores, specialty stores
• Advantage: Balance of capacity and visibility
• Shelves: 5 shelves typical
• Use case: Most versatile option for mixed-use stores

72" (6 ft) - Standard Tall ⭐ Most Popular

• Best for: Supermarkets, grocery stores, larger retail
• Advantage: Maximum display capacity, industry standard
• Shelves: 5-6 shelves
• Use case: Primary aisle runs in most retail formats
• Industry benchmark for general retail

84" (7 ft) - Extra Tall

• Best for: High-ceiling warehouses, club stores
• Advantage: Absolute maximum capacity
• Caution: Top shelves require step stools or become storage-only
• Use case: Warehouse retail, bulk merchandise

3. Width Options Explained

Gondola shelf width affects both structural stability and planogram flexibility. A 48" wide section requires approximately 25% fewer upright posts than equivalent footage using 36" sections, reducing costs.

24" (2 ft) - Narrow

• Best for: Small products, cosmetics, pharmacy items
• Advantage: Fits tight spaces, special order typically
• Use case: Narrow aisles, specialized displays

36" (3 ft) - Standard

• Best for: Most retail applications, specialty stores
• Advantage: Versatile, good for frequent planogram changes
• Use case: End caps, narrow aisles, specialty retail
• Most flexible option

48" (4 ft) - Wide

• Best for: Large products, bulk displays, supermarkets
• Advantage: 25% fewer uprights = lower cost per linear foot
• Use case: Standard supermarket aisles, high-volume categories
• Most cost-effective for large stores

4. Depth Measurements

Base Depth vs Shelf Depth

The base depth is the frame width. Shelf depthcan vary by level—typically deeper at bottom, shallower at top for better visibility and reach.

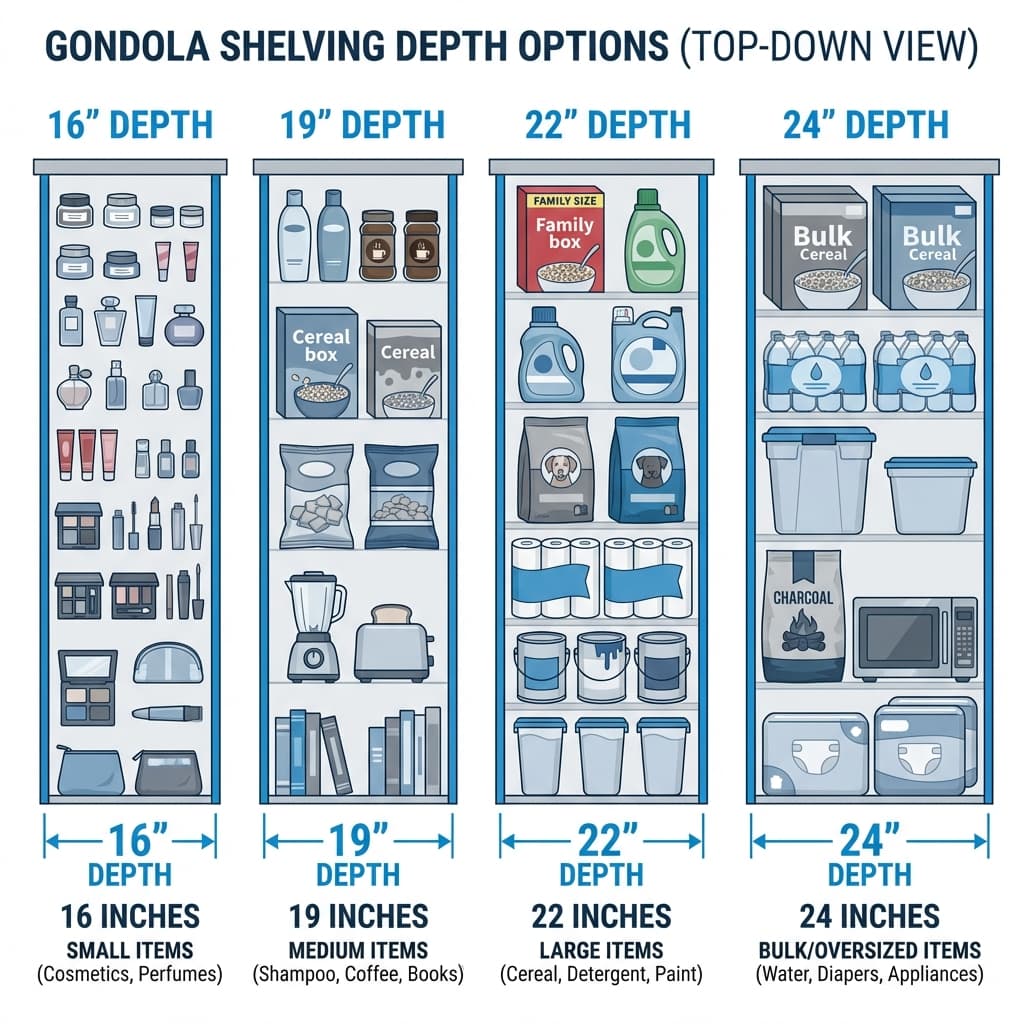

Recommended shelf depths by product type

5. Recommended Dimensions by Store Type

Different retail formats have evolved specific dimensional preferences based on customer behavior, product mix, and space constraints.

6. Weight Capacity Guide

Gondola shelf weight capacity varies by dimensions and steel gauge. Always verify load ratings with your supplier and distribute weight evenly.

7. Common Sizing Mistakes to Avoid

❌ Mistake 1: Insufficient Aisle Width

Many retailers calculate aisle width without accounting for shelf overhang or customer movement. ADA requires minimum 36" clear passage; comfortable shopping requires 42"-48".

❌ Mistake 2: Mismatched Shelf Depths

Using the same depth for all shelves wastes space and blocks visibility. Use deeper shelves (19"-22") at bottom, shallower (10"-16") at eye level.

❌ Mistake 3: Overlooking Height Restrictions

Forgetting ceiling fixtures, sprinklers, and HVAC. Always leave 12"-18" clearance above tallest unit. Check fire codes in your jurisdiction.

❌ Mistake 4: Ignoring Double-Sided Depth

For island (double-sided) gondolas, combined depth is 32"-48". A 22" base on each side = 44" total width, significantly impacting aisle planning.

8. How to Choose the Right Size

Step 1: Assess Your Products

• Small items (jewelry, cosmetics): 8"-10" shelf depth, 48"-54" height
• Medium items (toys, apparel): 12"-16" shelf depth, 60"-72" height
• Large items (appliances): 19"-22" shelf depth, 72" height

Step 2: Measure Your Space

• Aisle width: Standard 42"-48" between gondolas
• ADA compliance: Minimum 36" clear aisle
• Ceiling height: Leave 12"-18" above tallest unit

Step 3: Calculate Requirements

📐 Formula: Store width ÷ (gondola width + aisle width) = Number of gondola rows that fit

📐 Linear footage: Number of sections × section width = Total display footage per aisle

9. Custom Dimensions

Need non-standard dimensions? Custom sizing is available but costs more and has longer lead times:

• Cost: +20-40% over standard sizes
• Lead time: +2-4 weeks
• Minimum order: Usually 20+ units
• When it makes sense: Unique architectural features, brand differentiation, specific product requirements
